Liyi Computerized Electronic Universal Testing Machine Tensometer
Key Features
- Computer-controlled Windows system operation
- Precision force measurement with ±0.5% accuracy
- Maximum force capacity of 500kg
- High-resolution measurement (1/250,000 - 1/150,000)
- Panasonic servo motor for smooth operation
- 850mm stroke (customizable)
- Tests tensile, compression, bending, shear, peel, and fatigue cycling
- Compatible with metals, plastics, textiles, composites, and more
Technical Specifications
| Attribute |
Value |
| Operation |
Computer Windows system |
| Test Result |
Output from computer |
| Force Capacity |
Max 500kg |
| Accuracy |
±0.5% |
| Motor |
Panasonic servo motor |
| Stroke |
850 mm (can be customized) |
| Resolution |
1/250,000 - 1/150,000 |
| Power |
1PH, AC220V, 50/60Hz, Electronic |
| Warranty |
12 months |
Model Comparison
| Specification |
LY-1065 |
LY-1068 |
| Accuracy Class |
0.5 |
0.5 |
| Optional Load Cell |
1,2,5,10,20,50,100,200,500kg |
|
| Resolution |
1/250,000 |
1/150,000 |
| Force Relative Error |
±0.5% |
±0.5% |
| Test Speed Range |
0.1~500mm/min |
50~500mm/min |
| Motor |
Panasonic Servo Motor |
AC Inverter Motor |
Product Overview

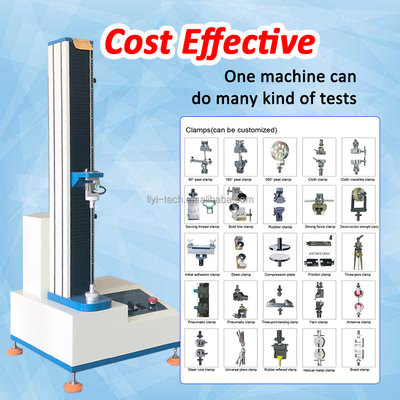

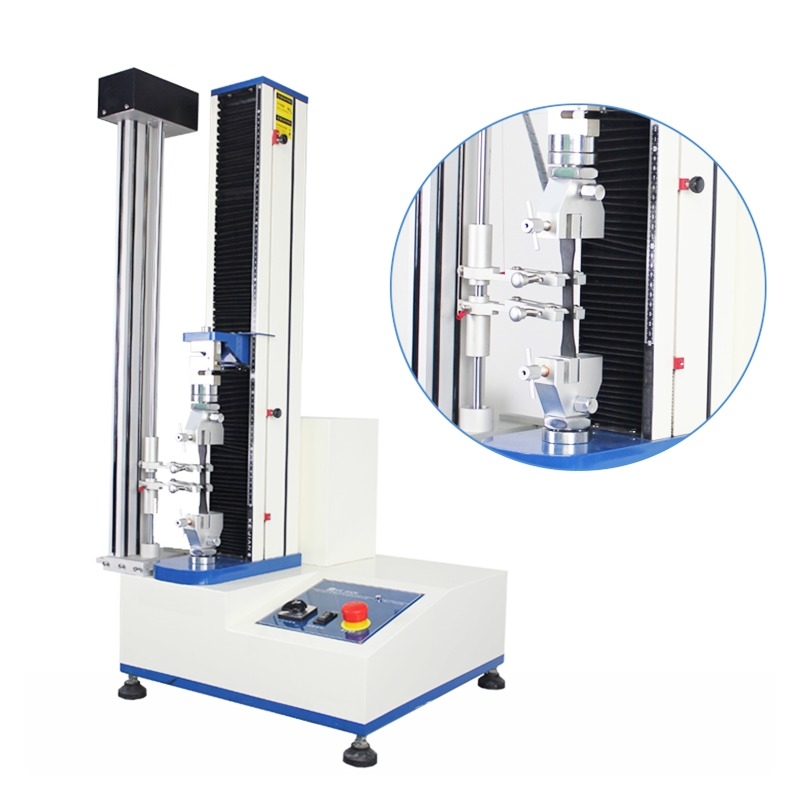

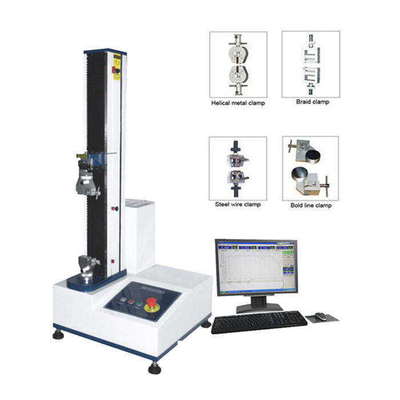

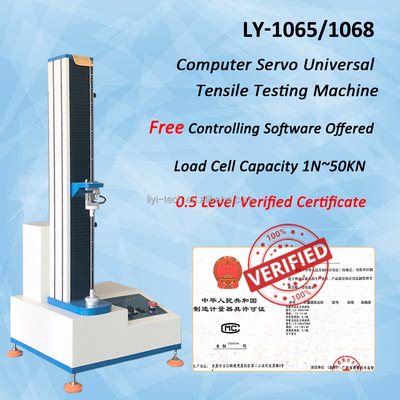

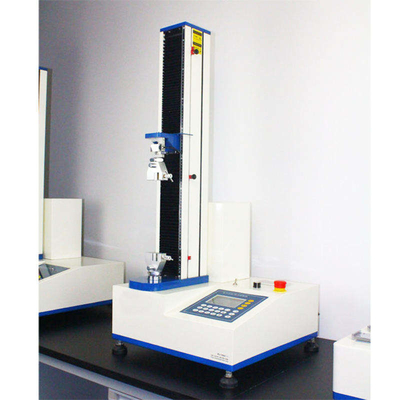

The Liyi universal testing machine is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack and fatigue cycling tests on various materials including metals, tape, composites, alloys, rigid plastics, films, elastomers, textiles, paper, board and finished products.
Design Standard: ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7
Product Images
Frequently Asked Questions
Are you the manufacturer? What after-sales service do you offer?
Yes, we are professional manufacturers of testing equipment. Every machine comes with a 12-month warranty after shipment, including free maintenance. For overseas shipments, we extend this to 14 months. Technical support is available via email or video chat, with solutions typically provided within 24-48 hours of problem identification.
What is the delivery time?
Standard machines are typically available from stock. If not in stock, delivery time is 15-20 working days after deposit receipt. We can accommodate urgent requests with special arrangements.
Do you accept customization and branding?
Yes, we offer both standard and customized machines according to your requirements. OEM and ODM services are available, including adding your logo to the equipment.
How do I install and use the machine?
Most machines are shipped fully assembled - you only need to connect the power cable to begin operation. We provide English operation videos via email, and can assist with on-site installation if required.
About Liyi Environmental Technology
Dongguan Liyi Environmental Technology Co., Ltd is a high-tech production-oriented enterprise specializing in environmental testing equipment. With advanced technology and experienced personnel, we serve customers in over 150 countries from our manufacturing base in Dongguan, Guangdong, with additional offices in Kunshan, Jiangsu for Eastern China operations.
Our product range includes simulated environmental testers, plastic and rubber testers, and various material testing equipment. We are committed to innovation, international standards compliance, and helping customers establish quality testing laboratories.
